LED-Leuchtrahmen Textil

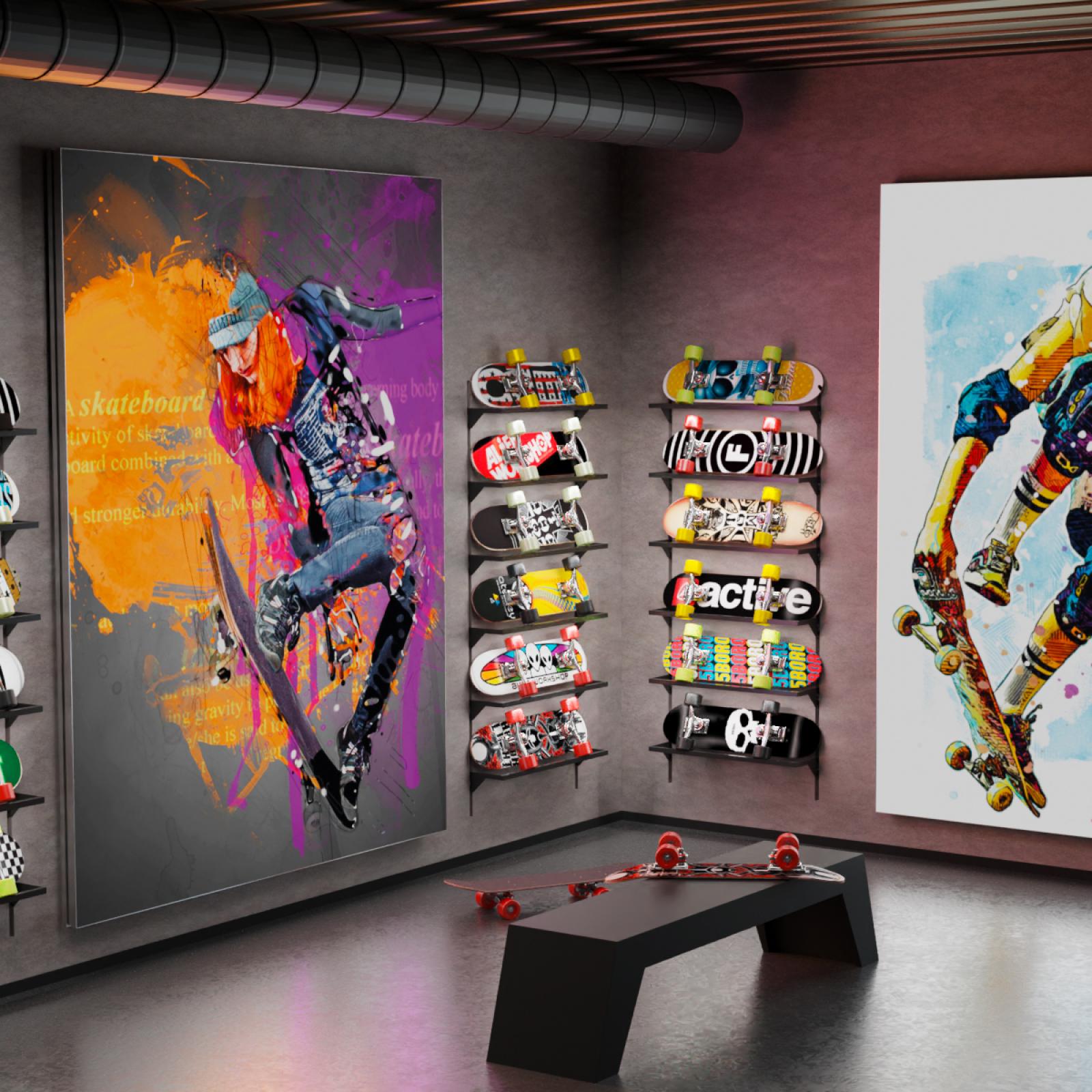

Large-area illuminated advertising media generate maximum attention and serve customer orientation on the sales floor or at trade fairs. Whether decorative on the wall or as a double-sided illuminated room divider, with our LED textile light frames you can create special highlight zones that make the displayed information widely visible. Our luminous LED frames are made to the millimeter according to each customer's specifications. With the project-related LED illuminants, such as SMD edge lights, LED carpets or LED panels, we achieve a homogeneous and brilliant illumination of the textile print. The high-resolution textile prints can be replaced quickly and cost-effectively, so nothing stands in the way of a seasonal redesign of the sales area. Furthermore, we also offer partial effect lighting within the illuminated frames to highlight certain areas.

LED-Leuchtrahmen Textil

max. dimensions for frame depths 65, 100 and 120 mm:
5000 x 2000 mm (width x height)

max. dimensions for frame depth 30 mm:
2000 x 2000 mm (width x height)

max. dimension for frame depth 23 mm:
1250 x 2450 mm (width x height)

KEY Facts

  • the light frame is made of silver anodized aluminum, RAL colors on request
  • depending on the size, the LEDs are installed on the side (SMD LED edge lighting) or on the back wall (LED area light or LED basic panel)
  • bright and homogeneous/shadow-free illumination of the motifs
  • single-sided LED light frame ideally suited for wall mounting
  • double-sided LED light frame with a construction depth of 120 mm ideally suited as LED display stand or as room divider
LED light frame textile
LED variants
Effect lighting
technical details
LED variants

1. SMD LED edge light - 2. LED area light (LED carpet) - 3. LED Basic panel

Effect lighting

By adding RGB LEDs, parts of the motif can be illuminated in color and, if necessary, animated by a dimmable control.

technical details

(1) 120 mm - (2) 100 mm - (3) 65 mm - (4) 30 mm - (5) 23 mm*
* Frame with light guide plate
