GALLERY MDC LED luminaire

is ideal for manufacturing furniture and shop fitting

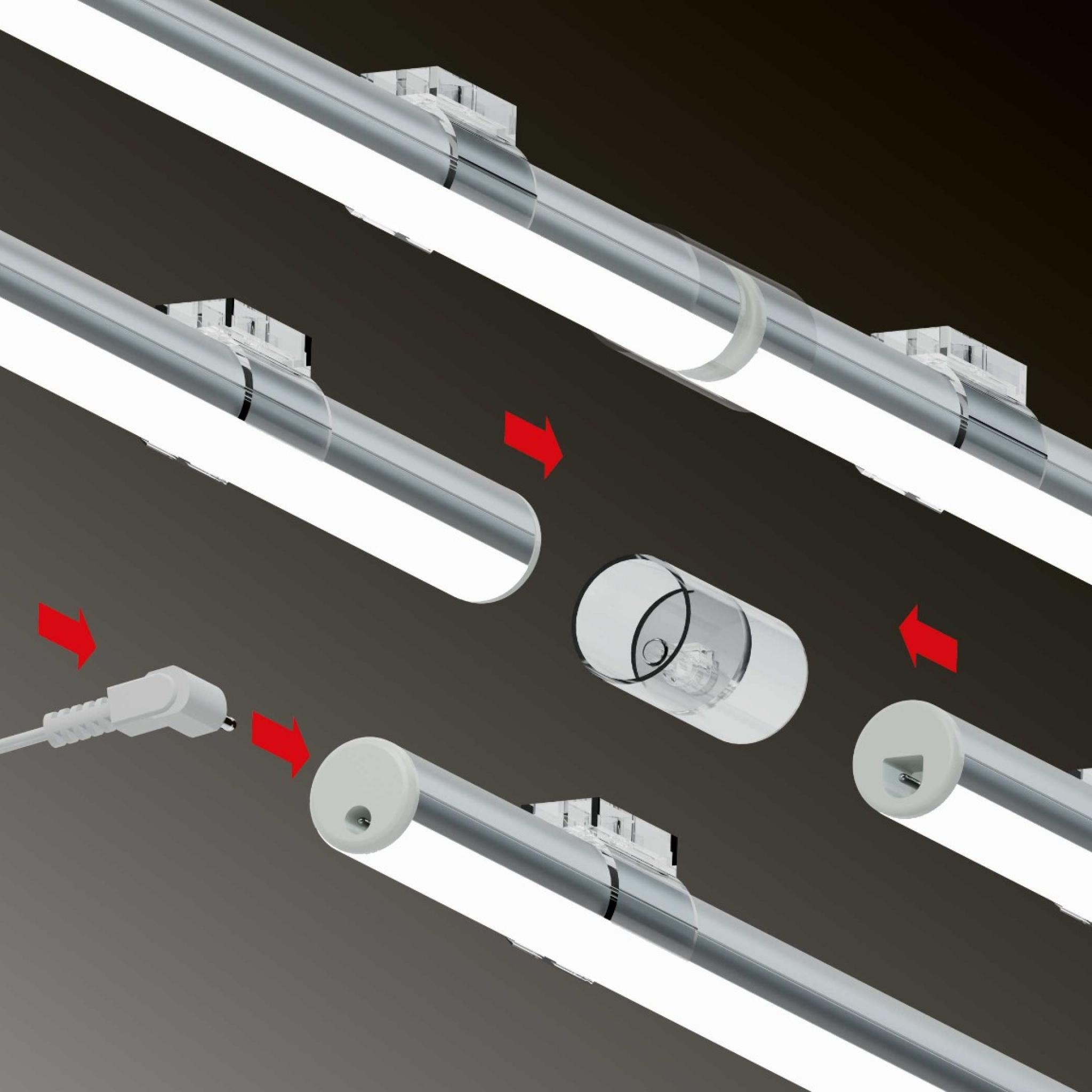

The GALLERY MDC LED luminaire is another development from our GALLERY range. The luminaire is characterised by its “plug & light system”. Interruption-free rows of lights can be assembled quickly and easily with the various system components. The MDC connector ensures that the GALLERY LED luminaire that are placed back-to-back are locked into position and that the beam angle of the entire row can be adjusted as one unit. The mini angled DC plug, which is also available with helical cables, ensure quick and varied laying of power cables together with magnetic cable holders. This cost-effective model is offered from stock in the following standard lengths: 590, 600, 605, 630, 950, 985, 1175 and 1200 mm.

cross-section (fig. m. standard diffuser)

standard length

590, 600, 605, 630, 950, 985, 1175, 1200 mm

shelf types

Glass

Wood

Grid

Metal

LED power

4,40 W/m

5,70 W/m

6,90 W/m

8,00 W/m

9,20 W/m

11,00 W/m

13,70 W/m

16,60 W/m

KEY FACTS

available in the following lengths: 590, 600, 605, 630, 950, 985, 1175 mm and 1200 mm
excellent light distribution
natural colour reproduction
premium quality LED lighting system
easy installation
aluminium profile with flexible LED circuit board in 3000 Kelvin (warm white), 4000 Kelvin (neutral white) or 6000 Kelvin (cold white)
connection cable available in various variants and lengths from 50 – 5000 mm

request GALLERY MDC LED luminaire datasheet

installation options

GALLERY MDC LED luminaire – assembly with plastic clip

GALLERY MDC LED lumnaire – beam angle of the LED is 120°

GALLERY MDC LED luminaire – the beam angle can be freely selected relative to the assembly surface

mounting

GALLERY MDC LED luminaire – assembly with screw-in plastic clip

GALLERY MDC LED luminaire – assembly with screw-in spring steel clip

GALLERY MDC LED luminaire – assembly with scanner rail clip, this is also suitable for assembling glass shelving

GALLERY MDC LED luminaire - MDC connector

end caps

INWI plugs

Dimension with diffuser - GALLERY MDC LED luminaire

frosted
